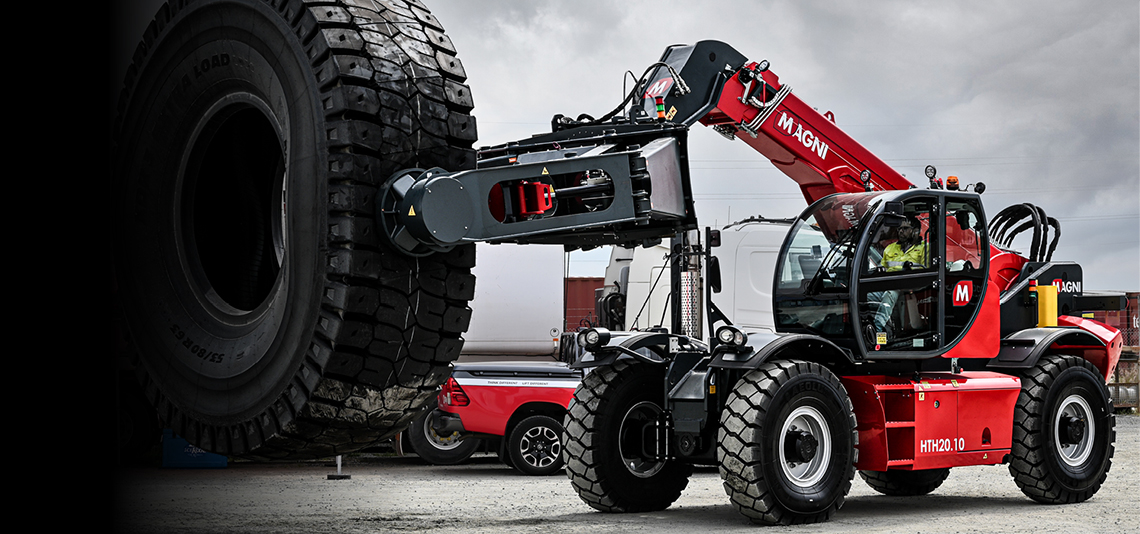

HTH HEAVY DUTY TELEHANDLERS
THE UNDISPUTED CHAMPION OF HEAVY-DUTY WORK
—
Magni´s robust HTH telescopic handlers boast a lifting capacity ranging from 10 to 45 tonnes, making them exceptionally well-suited for demanding industrial, port, and mining environments. These handlers deliver impressive steering speed and stability, making them the preferred choice for heavy-duty applications. Specifically designed for challenging tasks, they stand as the perfect companions for those seeking top-tier performance and reliability in extreme conditions. Magni's reachers are unparalleled champions in heavy-duty applications.
| TOP FEATURES | |
|---|---|
| 7" inch touchscreen | Compressed cabin, 100% air filtration |
| Multi-adjustable steering column | Hydrostatic transmission with variable displacement pump and motor |
| Load sensing hydraulics | More productivity with lower fuel consumption |
| Wide range of standard equipment | Three different steering modes |
| Oscillating and steerable rear axle with hydraulic lock | Two-speed front/rear and permanent 4WD |
MODEL OPTIONS HTH-TELEHANDLERS
—
Magni HTH telehandlers are available in eight different models with lifting capacities from 10 tonnes up to 50 tonnes. Lifting heights on HTH reach trucks start at 10 metres and go up to 14 metres.
| HTH 10.10 | HTH 16.10 | HTH 20.11 | HTH 24.11 | |
|---|---|---|---|---|
| Unladen weight | 13,100 kg | 19,200 kg | 24,000 kg | 29,700 kg |
| Rated power | 100 kW | 160 kW | 160 kW | 175 kW |
| Engine model | Deutz TCD 3,6 L4 Stage V | Volvo TAD 582 VE - Stage V | Volvo TAD 582 VE - Stage V | Volvo TAD 583 VE - Stage V |
| Max. Height | 9.50 m | 9.70 m | 9.70 m | 10.50 m |
| Max. Lifting capacity | 10,000 kg | 12,000 kg | 19,999 kg | 24,000 kg |
| Max. Reach | 5.00 m | 5.00 m | 5.10 m | 5.70 m |
| Max. lifting capacity w. max. reach | 2,600 kg | 4,200 kg | 6,500 kg | 7,250 kg |
| Max. lifting capacity w. max. lifting height | 5,500 kg | 9,000 kg | 15,000 kg | 14,000 kg |
Check the full collection!
—
Browse our product catalogue and see our full range of telehandlers.
RIGHT ATTACHMENTS FOR EACH JOB
—
In addition to the standard comprehensive technology package and high manufacturing quality, an important factor is the wide range of attachments. The range includes, among others.
| Forks |
| Rotating forks |
| Jibs |
| Winches |
| Buckets |
| Hooks |
| Platforms |
MY MAGNI
—
The My Magni remote monitoring system helps you manage your machines. The app gives you a complete overview to monitor your machines and you can see the most important things on your own screen. You can monitor error codes on the machine's CAN bus and track active events on the machine. Get access to machine reports and maintenance. My Magni is installed on every machine and for three years you can take full advantage and discover its potential, as the fee is included in the price of the machine. At the end of this period, you can decide whether you want to continue your subscription with Trackunit or discontinue it.
REDUCED MAINTENANCE COSTS
—
An EasyService contract offers your telehandler scheduled maintenance at a fixed price. No nasty surprises, as the service includes all the materials and labour needed for maintenance. You will only receive a service invoice for your machine when the work is done. You can concentrate on your business, because Avesco will service your machine professionally and on time for you.
EXTENDED EQUIPMENT PROTECTION
—
You can buy an extended warranty for your Magni handler. Choose from several options for your guarantee, and the duration of the contract in years/hours of use, to define the level of protection you need.
ASK FROM OUR EXPERT!
OUR PRODUCT MANAGER JUHO IS AT YOUR SERVICE FOR ALL YOUR MAGNI QUESTIONS
Juho Tirkkonen
